Rincian Produk
Tempat asal: Jiangsu
Nama merek: Zhijia
Sertifikasi: API, ce, RoHS, BIS, tisi, JIS, GS, ISO9001

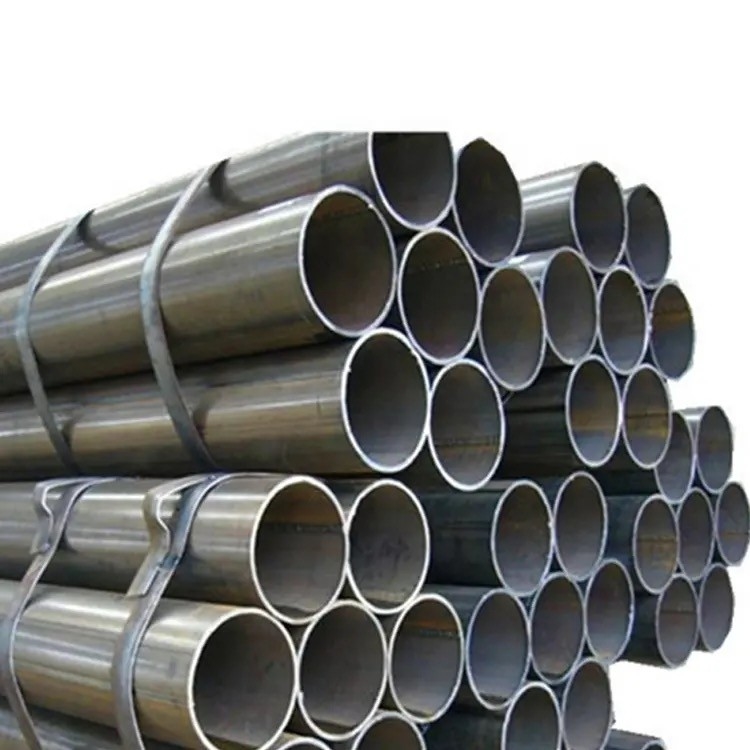

Nomor model: Pipa Seamless Pipa ERW Baja Karbon Rendah
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 5ton
Harga: USD 621 Per Ton
Kemasan rincian: dikemas ke dalam bundel atau kotak kayu atau sesuai kebutuhan pelanggan
Waktu pengiriman: 10-15 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 100000 Ton/Ton per Bulan
Diameter luar: |
219 - 3620 |
Sertifikat: |
API, Ce, Bsi, RoHS, SNI, BIS, SASO, PVOC, SONCAP, SABS |
Layanan Pemrosesan: |
Welding, Punching, Cutting, Bending, Decoiling |
Teknologi: |
Cold Rolled.hot Rolled |
Toleransi: |
±1% |
Diminyaki atau Tidak Diminyaki: |
Sedikit Diminyaki |
Pipa khusus: |
Pipa API, Lainnya, Pipa EMT, Pipa Tembok Tebal |
Panjang: |
12M, 6m |
Ukuran: |
OD: 10.3-1219.2mm WT: 1.65-60mm PANJANG: 5.8/6/11.8/12m |
Berakhir: |
ujung polos, miring dengan tutup tabung |
Permukaan: |
Diminyaki Atau Tidak Diminyaki |
Application: |
For converying gas, water & oil for Fluids Transmission |
Diameter luar: |
219 - 3620 |
Sertifikat: |
API, Ce, Bsi, RoHS, SNI, BIS, SASO, PVOC, SONCAP, SABS |
Layanan Pemrosesan: |
Welding, Punching, Cutting, Bending, Decoiling |
Teknologi: |
Cold Rolled.hot Rolled |
Toleransi: |
±1% |
Diminyaki atau Tidak Diminyaki: |
Sedikit Diminyaki |
Pipa khusus: |
Pipa API, Lainnya, Pipa EMT, Pipa Tembok Tebal |
Panjang: |
12M, 6m |
Ukuran: |
OD: 10.3-1219.2mm WT: 1.65-60mm PANJANG: 5.8/6/11.8/12m |
Berakhir: |
ujung polos, miring dengan tutup tabung |
Permukaan: |
Diminyaki Atau Tidak Diminyaki |
Application: |
For converying gas, water & oil for Fluids Transmission |
Nama Produk:pipa mulus, pipa baja mulus, pipa baja karbon mulus, pipa baja mulus karbon, pipa Seamless Line
Standar dan Kelas:API 5L /ASTM A106, Kelas B;ASTM A53, Gr.A,Gr.B;DN 17175/EN10216-2, Kelas ST35, ST45, ST52, 13CrMo44;DIN 2391/EN10305-1, Kelas St35, St45, St52;DIN 1629/EN10216-1, Kelas St37, St45, St52;JIS G3429 STH11;JIS G3429 STH12;JIS G3429 STH21;JIS G3429 STH22
Pipa baja mulus (SMLS)dibentuk dengan menggambar billet padat di atas batang penusuk untuk membuat cangkang berongga, tanpa pengelasan atau jahitan.Sangat cocok untuk membungkuk dan flanging.Keuntungan terbesar adalah meningkatkan kemampuan menahan tekanan yang lebih tinggi.Sehingga banyak digunakan untuk boiler dan bejana tekan, area otomotif, sumur minyak, dan komponen peralatan.
Pipa baja mulusdapat dipotong, berulir atau beralur.Dan metode pelapisan termasuk pernis hitam / merah, lukisan pernis, galvanisasi hot dip, dll
.
Kami menyediakan pipa baja las sebagai standar:
ASTM A106Pipa Baja Karbon Seamless untuk Layanan Suhu Tinggi
ASTM A53Pipa, Baja, Hitam dan Dicelup Panas, Dilapisi Seng, Mulus
DIN 1629Tabung Edaran Seamless dari Baja Non Paduan dengan Persyaratan Kualitas Khusus
DIN 2391-1Tabung Baja Presisi Mulus
JIS G3454Pipa Baja Karbon untuk Layanan Tekanan
| Ukuran | ASME, ASTM, dan API |
|---|---|
| Jenis | Dilas / ERW / Seamless / Fabrikasi |
| Membentuk | Hidrolik, Bulat, dll |
| Ukuran | 1/2 NB hingga 36 NB |
| Panjang | Minimum 3 hingga Maksimum 18 Meter |
| Ketebalan | 3-12mm |
| Akhir | Ujung Miring, Ujung Polos, Berinjak |
| Jadwal | Jadwalkan 40, 80, 160, XS, XXS |
Pipa Seamless Baja Karbon :-
Standar: ASTM A53, A106, API 5L, A179, A192, A210, A519, DIN2391, 2448/1629 /1630, dll
Bahan: Gr.A, Gr.B, ST52, dll
Ukuran: 10,3- 610mm OD, Ketebalan Dinding 1,0-40mm, panjang terpanjang 12000mm
Pipa Las Baja Karbon: -
Standar: ASTM A53, A252, API 5CT/5L, DIN1626, ASTM A500, dll
Bahan: Gr.A, Gr.B, X42, X52, X56, X60, X65, X70, J55, K55, N80, dll.
Ukuran: 21,3-2540mm OD, Ketebalan Dinding 2,5-20mm, panjang terpanjang 12000mm
| Jenis | ketebalan dinding | Diameter luar | Panjang |
|---|---|---|---|
| Ukuran NB (dalam stok) | Jadwalkan 5/10/40/80/160 | 1/8” ~ 8” | 6m |
| Pemasok Pipa Las Baja Karbon (tersedia + Ukuran Khusus) | 1,0 ~ 15,0 mm | 5.0mm ~ 1219.2mm | 6m |
| Pemasok Pipa Seamless Baja Karbon API 5L (Ukuran Khusus) | Sesuai kebutuhan | 5.0mm ~ 203.2mm | Daftar Harga Pipa Baja Karbon 6m |
| UKURAN" | UKURAN NB | MSL | ISMT | JSL | USL | BAO | Lontrin | SMTM | TNRS | V&M | Wuzi |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 1.323,53 | 1.316,18 | 1.330,88 | – | 1.029,41 | 1.036,76 | 1.470,59 | 1.397,06 | 1.426,47 | 1.022,06 |
| 3/4 | 20 | 1.102,94 | 1.095,59 | 1.110,29 | – | 955.88 | 963.24 | 1.250,00 | 1.176,47 | 1.205,88 | 948.53 |
| 1 | 25 | 955.88 | 948.53 | 963.24 | – | 882.35 | 889.71 | 1.102,94 | 1.029,41 | 1.058,82 | 875.00 |
| 1.25 | 32 | 911.76 | 904.41 | 919.12 | – | 852.94 | 860.29 | 1.058,82 | 985.29 | 1.014,71 | 845.59 |
| 1.5 | 40 | 808.82 | 801.47 | 816.18 | – | 808.82 | 816.18 | 955.88 | 882.35 | 911.76 | 801.47 |
| 2 | 50 | 794.12 | 786.76 | 801.47 | – | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 2.5 | 65 | 794.12 | 786.76 | 801.47 | – | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 3 | 80 | 794.12 | 786.76 | 801.47 | – | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 3.5 | 90 | 794.12 | 786.76 | 801.47 | – | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 4 | 100 | 794.12 | 786.76 | 801.47 | 735.29 | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 5 | 125 | 794.12 | 786.76 | 801.47 | 735.29 | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 6 | 150 | 794.12 | 786.76 | 801.47 | 735.29 | 617.65 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
| 8 | 200 | 794.12 | 786.76 | 801.47 | 735.29 | 647.06 | 654.41 | 941.18 | 867.65 | 897.06 | 639.71 |
| 10 | 250 | 794.12 | 786.76 | – | 735.29 | 647.06 | 654.41 | 941.18 | 867.65 | 897.06 | 639.71 |
| 12 | 300 | 852.94 | – | – | 735.29 | 647.06 | 654.41 | 1.000,00 | 926.47 | 955.88 | 639.71 |
| 14 | 350 | 852.94 | – | – | 735.29 | 661.76 | 669.12 | 1.000,00 | 926.47 | 955.88 | 654.41 |
| 16 | 400 | 882.35 | – | – | – | 661.76 | 669.12 | 1.029,41 | 955.88 | 985.29 | 654.41 |
| 18 | 450 | 882.35 | – | – | – | 676.47 | 683.82 | 1.029,41 | 955.88 | 985.29 | 669.12 |
| 20 | 500 | 882.35 | – | – | – | 676.47 | 683.82 | 1.029,41 | 955.88 | 985.29 | 669.12 |
| 22 | 550 | – | – | – | – | 705.88 | 713.24 | 1.176,47 | 1.029,41 | 1.132,35 | 698.53 |
| 24 | 600 | – | – | – | – | 705.88 | 713.24 | 1.176,47 | 1.029,41 | 1.132,35 | 698.53 |
| Harga USD/Ton Semua harga berlaku untuk SCH 40, SCH 60, SCH 80 & SCH XS |
|||||||||||
| JENIS | OD | Ketebalan |
| MULUS | 1/4 inci ~ 36 inci | 1,25mm ~ 50mm |
| ERW | 1/8 inci ~ 24 inci | Maks 26,5mm |
| LSAW | 219mm ~ 3120mm | 3mm ~ 25mm |
| SSAW | 16 inci ~ 64 inci | 3mm ~ 25mm |
Produk Baja mencakup industri-industri besar seperti di bawah ini:
Minyak & Gas (Kilang, Petrokimia, Rig Pengeboran/Fasilitas Lepas Pantai, Jalur Pipa) Tenaga/ Energi Alternatif (Tenaga Listrik Panas dan Hidroelektrik, Pembangkit Limbah Menjadi Energi, Jalur Trasmisi, Gardu Induk) Pasokan Air dan Limbah (Bendungan, Jalur Pipa Transmisi, Saluran Irigasi , Stasiun Pompa) Industri dan Proses (Pabrik Baja, Pabrik Farmasi, Pabrik Kimia, Pertambangan)| Ukuran Pipa dalam Inci | Jadwal 40 Ketebalan | Jadwal 10 Ketebalan | Jadwal 5 Ketebalan | ||||||
| OD | PENGENAL | Ketebalan dinding | OD | PENGENAL | Ketebalan dinding | OD | PENGENAL | Ketebalan dinding | |
| 3/4 | 1.050 | 0,824 | 0,113 | 1.050 | 0,884 | 0,083 | 1.050 | 0,920 | 0,065 |
| 1 | 1.315 | 1.049 | 0,133 | 1.315 | 1.097 | 0,109 | 1.315 | 1.185 | 0,065 |
| 1-1/4 | 1.660 | 1.380 | 0,140 | 1.660 | 1.442 | 0,109 | 1.660 | 1.530 | 0,065 |
| 1-1/2 | 1.900 | 1.610 | 0,145 | 1.900 | 1.682 | 0,109 | 1.900 | 1.770 | 0,065 |
| 2 | 2.375 | 2.067 | 0,154 | 2.375 | 2.157 | 0,109 | 2.375 | 2.245 | 0,065 |
| 2-1/2 | 2.875 | 2.469 | 0,203 | 2.875 | 2.635 | 0,120 | 2.875 | 2.709 | 0,083 |
| 3 | 3.500 | 3.068 | 0,216 | 3.500 | 3.260 | 0,120 | 3.500 | 3.334 | 0,083 |
| 3-1/2 | 4.000 | 3.548 | 0,226 | 4.000 | 3.760 | 0,120 | 4.000 | 3.834 | 0,083 |
| 4 | 4.500 | 4.026 | 0,237 | 4.500 | 4.260 | 0,120 | 4.500 | 4.334 | 0,083 |
| 6 | 6.625 | 6.065 | 0,280 | 6.625 | 6.357 | 0,134 | 6.625 | 6.407 | 0,109 |
| 8 | 8.625 | 7.981 | 0,322 | 8.625 | 8.329 | 0,148 | 8.625 | 8.407 | 0,109 |
| Ukuran | Diameter Lainnya | ID pipa | WT | Standar ke XXHY | Berat | Bagian Modulus | Jadwal Pipa # |
Galon |
| 1/2 | 0,84 | 0,622 | 0,109 | STD | 0,85 | .0407 | 40 | .0158 |
| 0,546 | 0,147 | XHY | 1.09 | .0478 | 80 | .0122 | ||
| 0,464 | 0,188 | 1.31 | 0,0528 | 160 | .0088 | |||
| 3/4 | 1.05 | 0,824 | 0,113 | STD | 1.13 | .0705 | 40 | .0277 |
| 0,742 | 0,154 | XHY | 1.48 | .0853 | 80 | .0225 | ||
| 0,612 | 0,219 | 1.95 | .1006 | 160 | .0153 | |||
| 1 | 1.315 | 1.049 | 0,133 | STD | 1.68 | .1328 | 40 | 0,0449 |
| 0,957 | 0,179 | XHY | 2.17 | .1606 | 80 | .0374 | ||
| 0,815 | 0,250 | 2.85 | .1904 | 160 | 0,0271 | |||
| 1 1/4 | 1.66 | 1.380 | 0,140 | STD | 2.27 | .2346 | 40 | .0777 |
| 1.278 | 0,191 | XHY | 3.00 | .2913 | 80 | .0666 | ||
| 1.160 | 0,250 | 3.77 | .3421 | 160 | 0,0549 | |||
| 1 1/2 | 1.90 | 1.610 | 0,145 | STD | 2.72 | .3262 | 40 | .1058 |
| 1.500 | 0,200 | XHY | 3.63 | .4118 | 80 | .0918 | ||
| 1.338 | 0,281 | 4.86 | .5079 | 160 | .0730 | |||
| 2 | 2.375 | 2.157 | 0,109 | 2.64 | .4205 | 10 | .1898 | |
| 2.067 | 0,154 | STD | 3.66 | .5606 | 40 | .1743 | ||
| 1.939 | 0,218 | XHY | 5.03 | .7309 | 80 | .1534 | ||
| 1.875 | 0,250 | 5.68 | .8045 | .1434 | ||||
| 1.813 | 0,281 | 6.29 | .8666 | .1344 | ||||
| 1.687 | 0,344 | 7.47 | .9806 | 160 | .1161 | |||
| 2 1/2 | 2.875 | 2.635 | 0,120 | 3.53 | .6870 | 10 | .2833 | |
| 2.469 | 0,203 | STD. | 5.80 | 1.0640 | 40 | .2487 | ||
| 2.443 | 0,216 | 6.14 | 1.1169 | .2435 | ||||
| 2.375 | 0,250 | 7.02 | 1.2468 | .2301 | ||||
| 2.323 | 0,276 | XHY | 7.67 | 1.3386 | 80 | .2202 | ||
| 2.125 | 0,375 | 10.02 | 1.6371 | 160 | .1842 | |||
| 3 | 3.50 | 3.260 | 0,120 | 4.34 | 1.0411 | .4336 | ||
| 3.188 | 0,156 | 5.58 | 1.3122 | .4147 | ||||
| 3.156 | 0,172 | 6.12 | 1.4265 | .4064 | ||||
| 3.124 | 0,188 | 6.66 | 1.5342 | .3984 | ||||
| 3.068 | 0,216 | STD. | 7.58 | 1.7241 | 40 | .3840 | ||
| 3.000 | 0,250 | 8.69 | 1.9372 | .3672 | ||||
| 2.938 | 0,281 | 9.67 | 2.1207 | .3521 | ||||
| 2.900 | 0,300 | XHY | 10.26 | 2.2253 | 80 | .3431 | ||
| 2.624 | 0,438 | 14.34 | 2.8774 | 160 | .2811 | |||
| 3 1/2 | 4.0 | 3.760 | 0,120 | 4.98 | 1.3776 | 10 | .5768 | |
| 3.548 | 0,226 | STD. | 9.12 | 2.3939 | 140 | .5136 | ||
| 3.500 | 0,250 | 10.02 | 2.6001 | .4998 | ||||
| 3.438 | 0,281 | 11.17 | 2.8562 | .4821 | ||||
| 3.364 | 0,318 | XHY | 12.52 | 3.1400 | 80 | .4617 | ||
| 4 | 4.5 | 4.260 | 0,120 | 5.62 | 1.7612 | 10 | .7404 | |
| 4.188 | 0,156 | 7.24 | 2.2354 | .7156 | ||||
| 4.124 | 0,188 | 8.67 | 2.6296 | .6942 | ||||
| 4.094 | 0,203 | 9.32 | 2.8173 | .6838 | ||||
| 4.062 | 0,219 | 10.02 | 3.0184 | .6725 | ||||
| 4.026 | 0,237 | STD. | 10.80 | 3.2145 | 40 | .6613 | ||
| 4.000 | 0,250 | 11.36 | 3.3611 | .6528 | ||||
| 3.938 | 0,281 | 12.67 | 3.7021 | 60 | .6326 | |||
| 3.876 | 0,312 | 13.97 | 4.0273 | .6126 | ||||
| 3.826 | 0,337 | XHY | 15.00 | 4.2713 | 80 | .5972 | ||
| 3.624 | 0,438 | 19.02 | 5.1790 | 120 | .5361 | |||
| 3.438 | 0,531 | 22.53 | 5,8997 | 160 | .4822 | |||
| 5 | 5.563 | 5.187 | 0,188 | 10.80 | 4.1161 | 1,0979 | ||
| 5.125 | 0,219 | 12.51 | 4.7279 | 1.0716 | ||||
| 5.047 | 0,258 | STD. | 14.63 | 5,4500 | 40 | 1.0391 | ||
| 5.001 | 0,281 | 15.87 | 5.8644 | 1.0204 | ||||
| 4.939 | 0,312 | 17.51 | 6.4074 | .99647 | ||||
| 4.875 | 0,344 | 19.19 | 6.9358 | .9696 | ||||
| 4.813 | 0,375 | XHY | 20.80 | 7.4300 | 80 | .9449 | ||
| 4.563 | 0,500 | 27.06 | 9.2534 | 120 | .8495 | |||
| 4.313 | 0,625 | 32.99 | 10.7976 | 160 | .7590 | |||
| 6 | 6.625 | 6.407 | 0,109 | 7.59 | 3.5769 | 5 | 1,6748 | |
| 6.357 | 0,134 | 9.30 | 4.3475 | 10 | 1.6488 | |||
| 6.313 | 0,156 | 10.79 | 5.0107 | 1.6260 | ||||
| 6.249 | 0,188 | 12.94 | 5.9351 | 1,5937 | ||||
| 6.219 | 0,203 | 13.94 | 6.3804 | 1,5780 | ||||
| 6.187 | 0,219 | 15.00 | 6.8261 | 1,5620 | ||||
| 6.125 | 0,250 | 17.04 | 7.6905 | 1.5306 | ||||
| 6.065 | 0,280 | STD. | 18.99 | 8.4958 | 40 | 1,5008 | ||
| 6.001 | 0,312 | 21.06 | 9.3416 | 1.4688 | ||||
| 5.937 | 0,344 | 23.10 | 10.111 | 1.4391 | ||||
| 5.875 | 0,375 | 25.05 | 10.893 | 1.4082 | ||||
| 5.761 | 0,432 | XHY | 28.60 | 12.224 | 80 | 1,3541 | ||
| 5.625 | 0,500 | 32.74 | 13.711 | 1.2909 | ||||
| 5.501 | 0,562 | 36.43 | 14.9806 | 120 | 1.2346 | |||
| 5.375 | 0,625 | 40.09 | 16.1821 | 1.1787 | ||||
| 5.187 | 0,719 | 45.39 | 17.8243 | 160 | 1,0977 | |||
| 4.897 | 0,864 | XXHY | 53.21 | 20.025 | .9784 | |||
| 4.625 | 1.000 | 60.13 | 21.7719 | .8727 | ||||
| 4.375 | 1.125 | 66.14 | 23.1237 | .7809 |
